HUADA ZMDM-9PH Micro Rectangular Electrical Connector

The HUADA ZMDM-9PH Micro Rectangular Electrical Connector is a cutting-edge solution designed for applications requiring compact and reliable connectivity. This connector is significantly smaller than the J29A series, with a reduction of 2.78mm in length, 5.4mm in width, and 3.9mm in height, making it approximately 40% smaller in volume. Despite its compact size, it boasts impressive durability and performance, operating efficiently in extreme temperatures ranging from -55°C to +125°C. The connector’s high insulation resistance of 5000 mΩ and mechanical life of 500 cycles ensure long-lasting reliability. Additionally, it is engineered to withstand high impact (490m/s²) and vibration (10-2000Hz, 196m/s²), making it ideal for demanding environments.
The ZMDM-9PH also excels in electrical performance, with a low contact resistance of just 8 mΩ and a current rating of 5 A, ensuring excellent conductivity. It is pressure resistant up to 800V and maintains functionality in high humidity conditions (40°C, 98%). These features make the HUADA ZMDM-9PH an exceptional choice for applications where space is limited but performance cannot be compromised. Whether used in industrial, aerospace, or other high-stress environments, this micro rectangular connector delivers reliable and efficient connectivity, meeting the rigorous demands of modern technology.

Key features of the HUADA ZMDM-9PH Connector

The HUADA ZMDM-9PH Micro Rectangular Electrical Connector is designed to meet rigorous technical standards, ensuring reliable performance in various demanding applications. Here are some detailed technical specifications: Maximum Operating Temperature: The connector can operate efficiently at temperatures up to +125°C, making it suitable for high-temperature environments.
Minimum Operating Temperature: It remains functional at temperatures as low as -55°C, ensuring reliability in extreme cold conditions.
Insulation Resistance: With an insulation resistance of 5000 mΩ, the ZMDM-9PH provides excellent electrical insulation, reducing the risk of short circuits.
Mechanical Life: The connector is rated for 500 mating cycles, indicating its durability and long-term usability.
Impact Resistance: It can withstand impacts up to 490m/s², making it robust enough for high-impact environments.
Vibration Resistance: The connector is designed to endure vibrations ranging from 10 to 2000Hz at 196m/s², ensuring stable performance in vibrating conditions.
Contact Resistance: With a low contact resistance of 8 mΩ, the ZMDM-9PH ensures efficient electrical conductivity.
Relative Humidity: It can operate in environments with relative humidity up to 98% at 40°C, maintaining performance in humid conditions.
Current Rating: The connector supports a current of up to 5 A, suitable for various electrical applications.
Pressure Resistance: It is pressure resistant up to 800V, ensuring safety and reliability under high voltage conditions.
These specifications highlight the ZMDM-9PH’s capability to perform reliably in harsh environments, making it an ideal choice for industries such as aerospace, military, and industrial applications where space is limited but performance is critical.

Technical Features Table

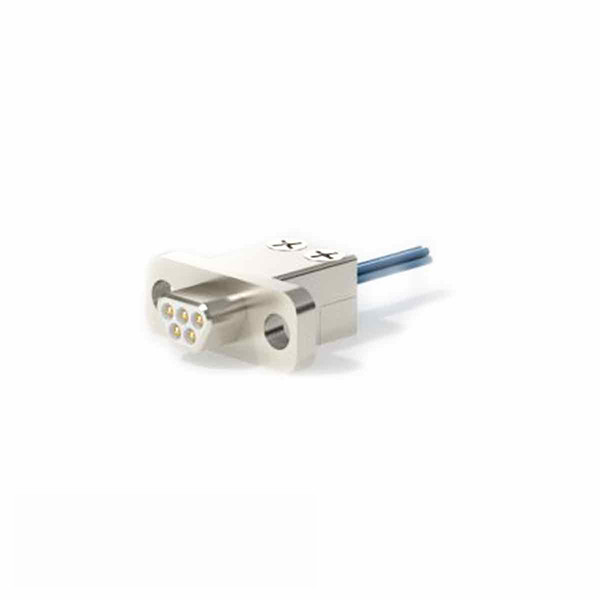

HUADA ZMDM-9PH Micro Rectangular Electrical Connector - Compact, Durable, High Performance Images
